Creating a Line Item Facet for an Associated Entity in RAP (ABAP RESTful Application Programming Model)

Er Tasneem Ahmad Karimi Monday, May 12, 2025

Creating a Line Item Facet for an Associated Entity in RAP (ABAP RESTful Application Programming Model) involves multiple steps. Here’s a structured breakdown of how you can achieve this:

Step-by-Step Guide

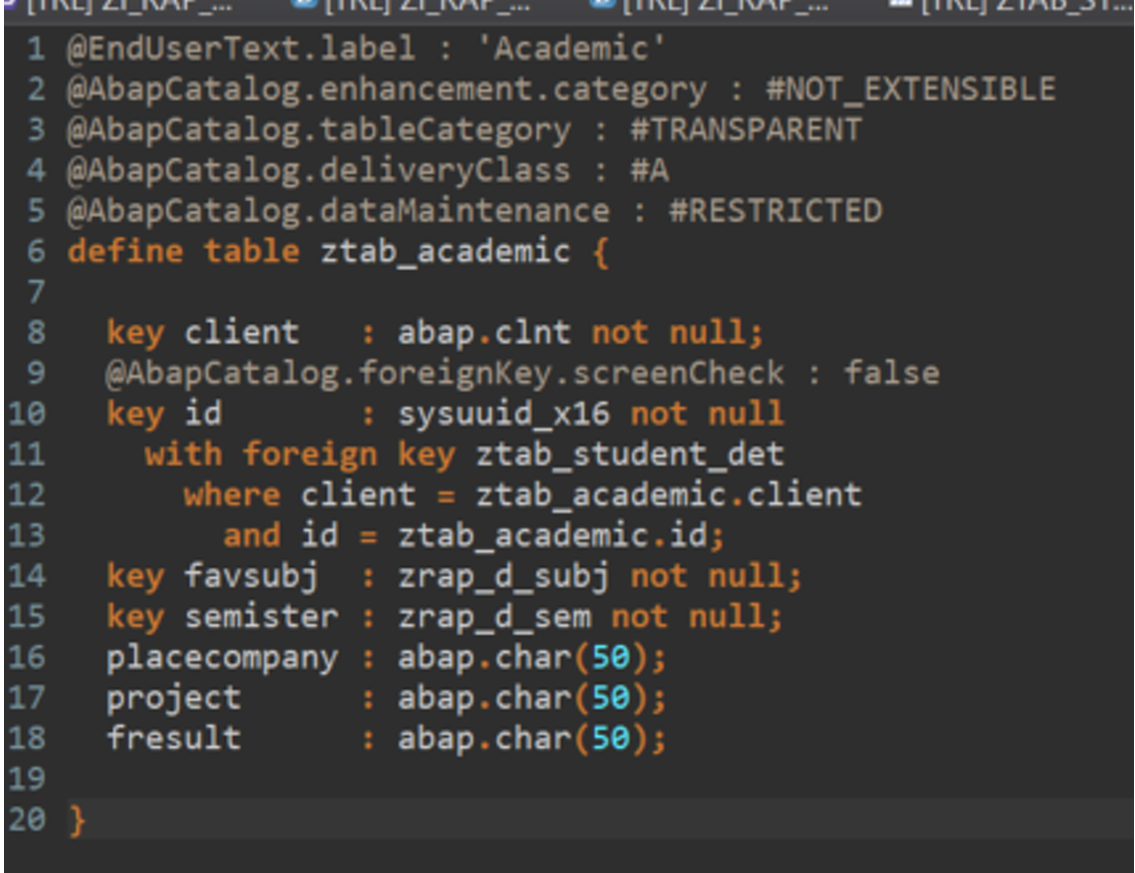

1. Create a Custom Table

  • Define a table with a foreign key relationship to the root database table.
  • Ensure the table structure aligns with the requirements of the associated entity

2. Create an Interface Entity View

  • Develop an interface entity view on top of the custom table.
  • Establish an association with the domain interface entity view.
  • Define a composition relationship with the root interface view.

3. Set Up Composition & Association

  • Connect the root entity with the newly created entity via composition and association.
  • Ensure the metadata extension view for both entities exists in a single metadata extension file.
  • Use a target element to display the associated entity.

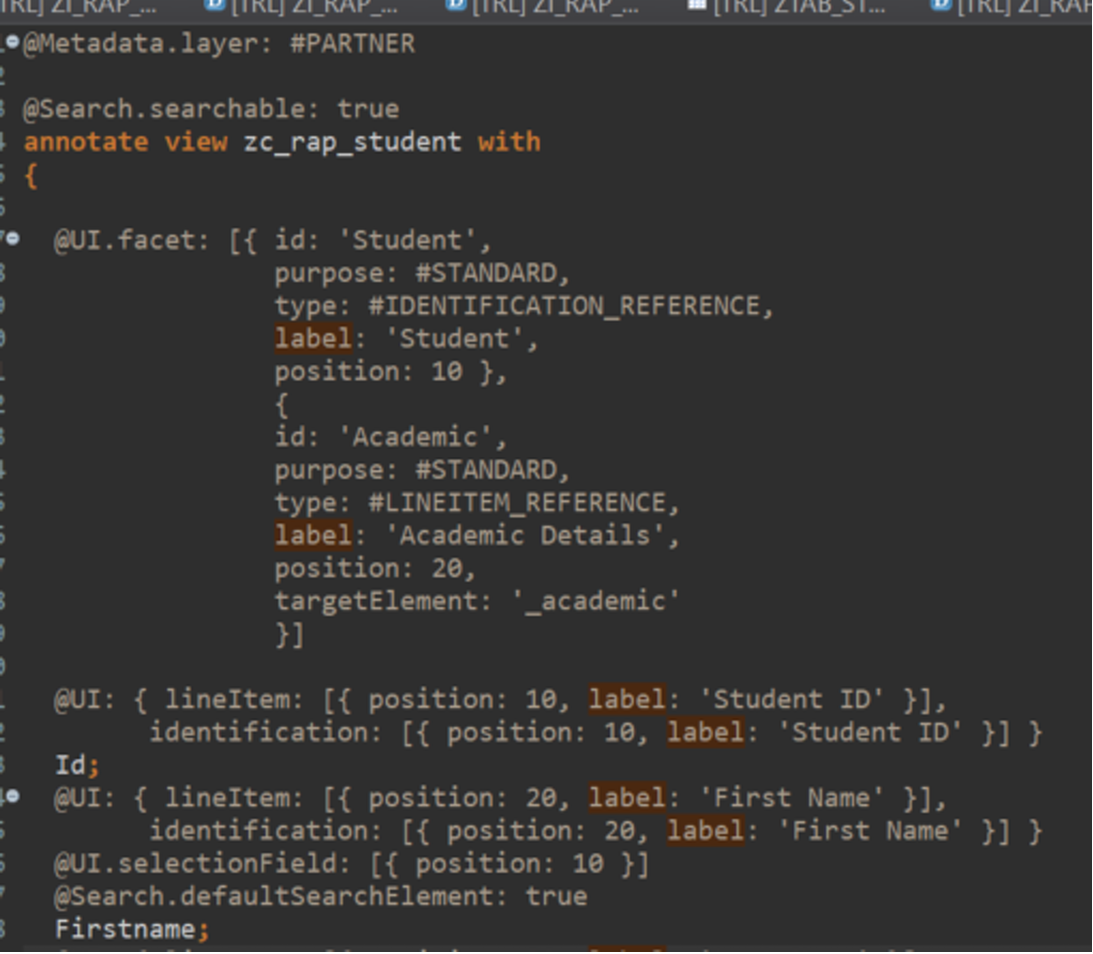

4. Create Facets for Displaying Line Items

  • Define a facet for the newly created interface entity view.
  • Add the facet inside the metadata extension of the root interface projection view.
  • Use metadata extensions to structure UI elements such as line positions, facts, search helps, identifications, and user actions.

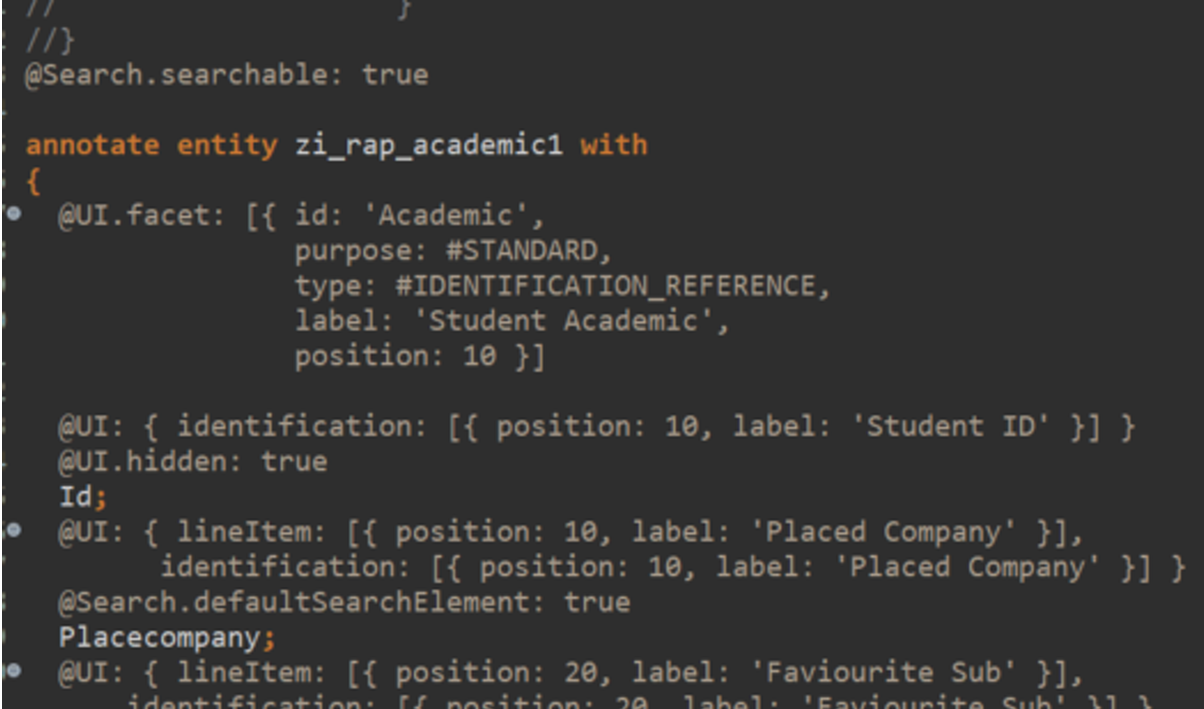

5. Define Metadata Extensions for UI Elements

  • Separate metadata extension files should be created for the new entity view.
  • This helps in rendering identification details and line item representations in the parent entity’s UI.

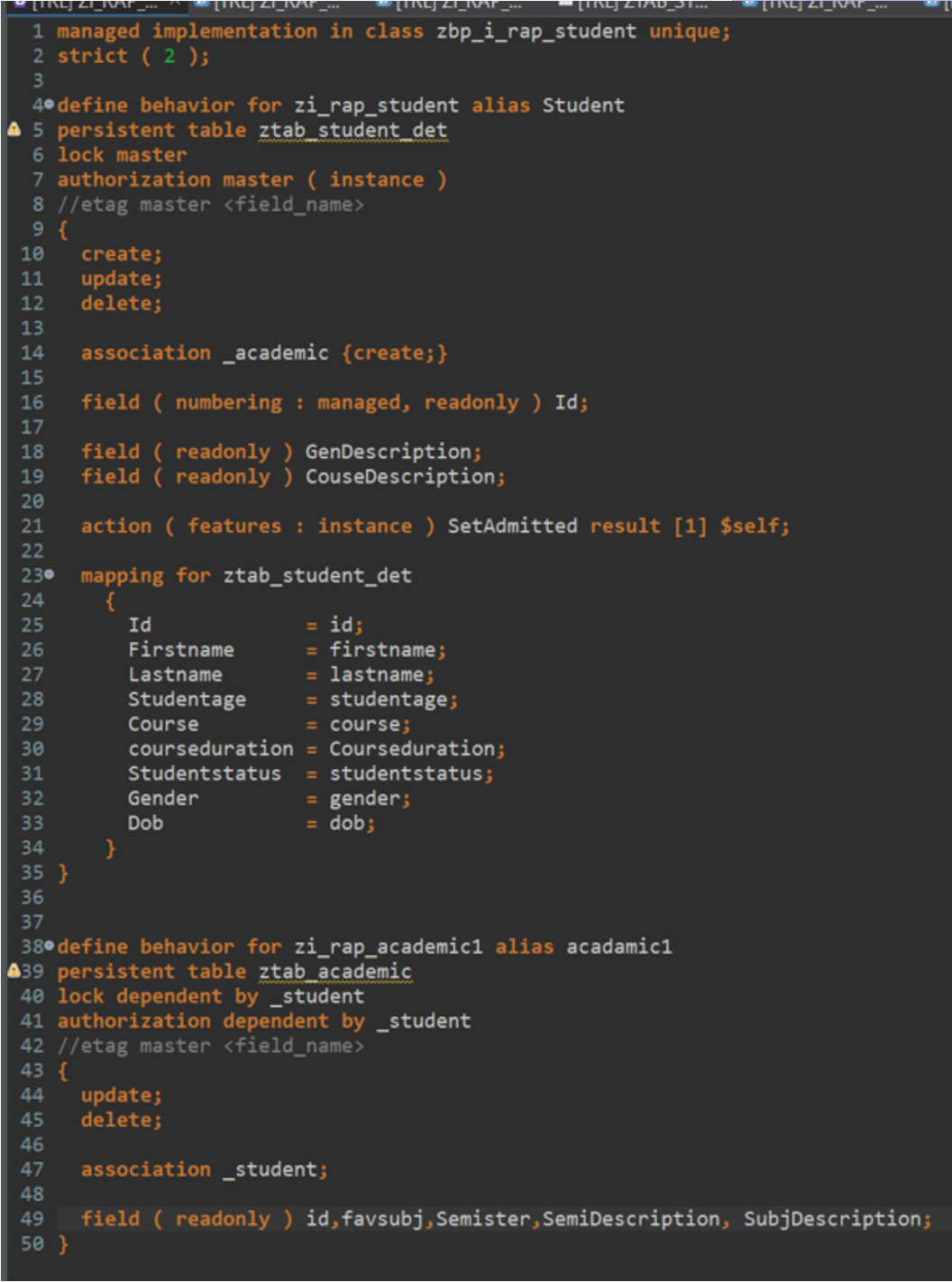

6. Create a Behavior Definition

  • Implement behavior definitions for both:
    • The root interface view.
    • The root projection view.
  • Within the interface view's behavior definition:
    • Implement class mapping to establish connectivity between the table and entity views.

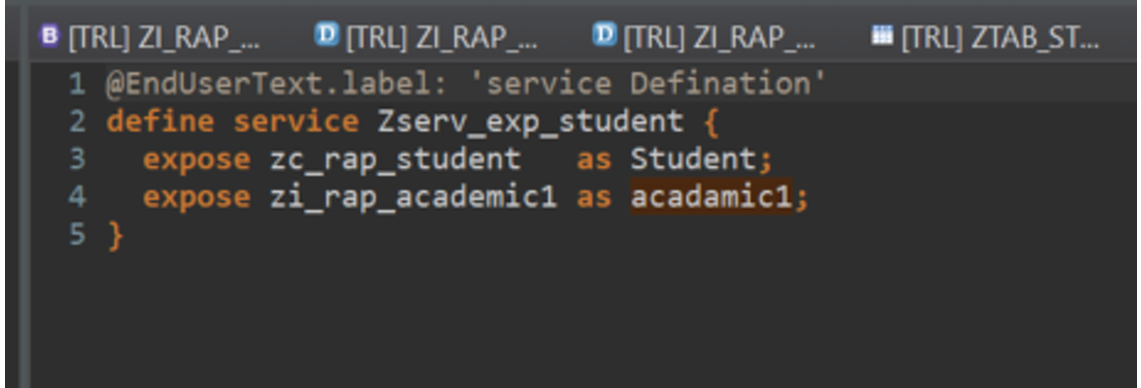

7. Expose the Entity via Service Definition

  • Create a Service Definition to expose the consumption views.
  • Ensure that all related views connected through association and composition are exposed. Without this, projections won't be available upon service publication.

8. Create Service Binding & Publish the Service

  • Implement Service Binding to expose the service definition.
  • Finally, publish the service to make the newly created projections accessible.

This structured approach ensures that the associated entity’s Line Item Facet is correctly implemented within RAP for efficient UI rendering and functionality.
