Creating custom action buttons in SAP RAP (ABAP RESTful Application Programming Model) is a powerful way to enhance user interaction and trigger backend processes efficiently. Here’s a structured guide to help you implement a custom action button:
Understanding Action Buttons in SAP RAP
Action buttons allow users to perform specific operations directly from the UI, such as submitting data, triggering workflows, or executing business logic. These buttons are typically tied to RESTful operations that interact with backend services, enabling CRUD (Create, Read, Update, Delete) operations.
Steps to Create a Custom Action Button in SAP RAP
Step 1: Define the Action in the Behavior Definition
- In the Behavior Definition of the root entity, declare the action using the
action
keyword. - Assign a relevant name to the action button, e.g.,
SetAdmitted
.

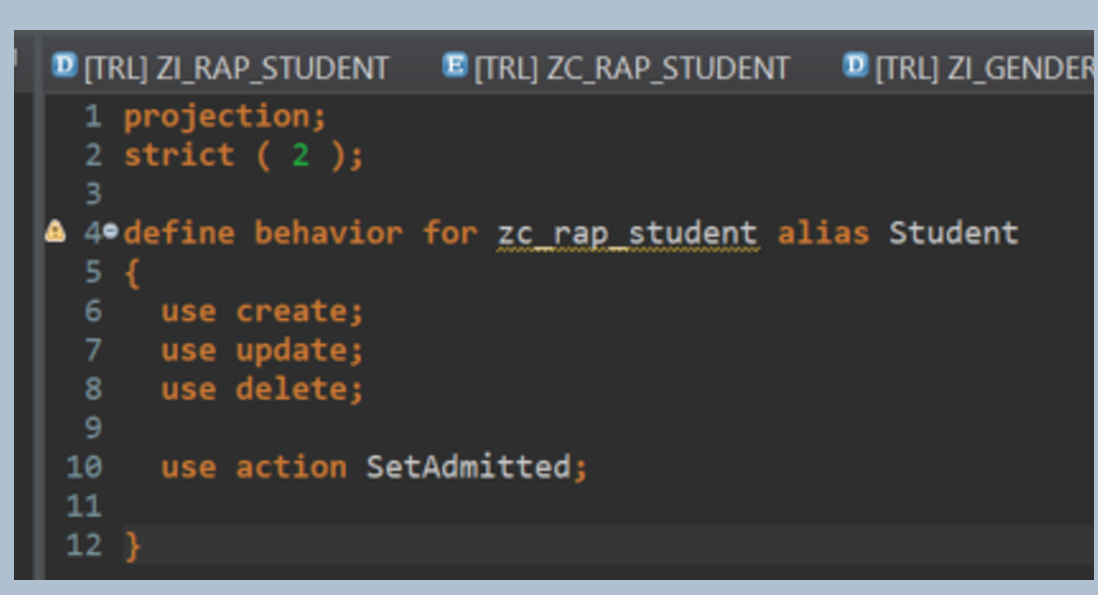

Step 2: Declare the Action in the Projection Entity
- In the Behavior Definition of the projection entity, declare the same action using the
USE
keyword. - Ensure consistency in naming between the root and projection entities.
Step 3: Implement the Action Logic
- Implement the method corresponding to the action (
SetAdmitted
) in the Behavior Pool Class. - Use Entity Manipulation Language (EML) statements to process the business logic.
- Modify the data and pass the updated result back for UI display.
Step 4: Define the UI Button in Metadata Extension
- Establish the relation between the action button and the behavior definition in the Metadata Extension file.
- Use UI annotations to define the button’s behavior and placement.
- Ensure the action button name matches in both metadata and behavior definitions.

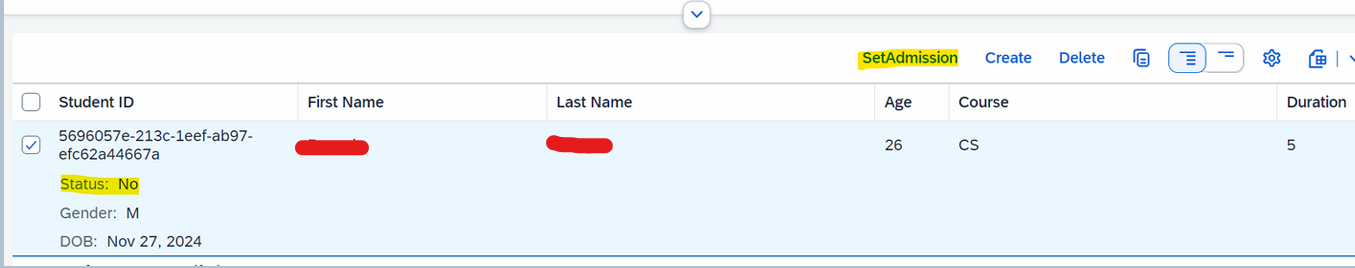

Step 5: Test and Deploy
- After completing the above steps, test the action button in the UI.
- Verify that it correctly triggers the backend logic and updates the UI accordingly.
